Advanced Peavey CS 4000 Professional Power Amplifier

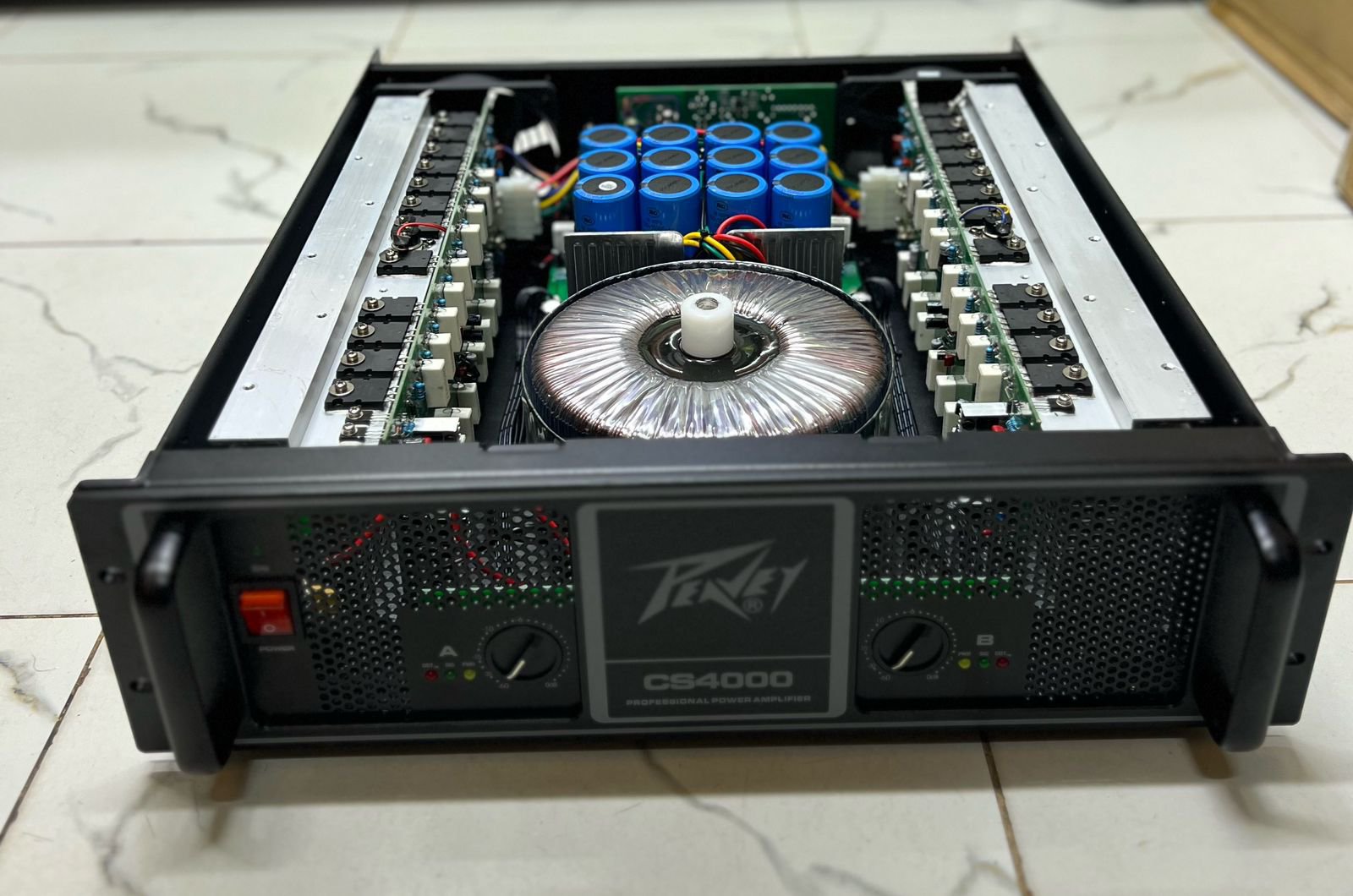

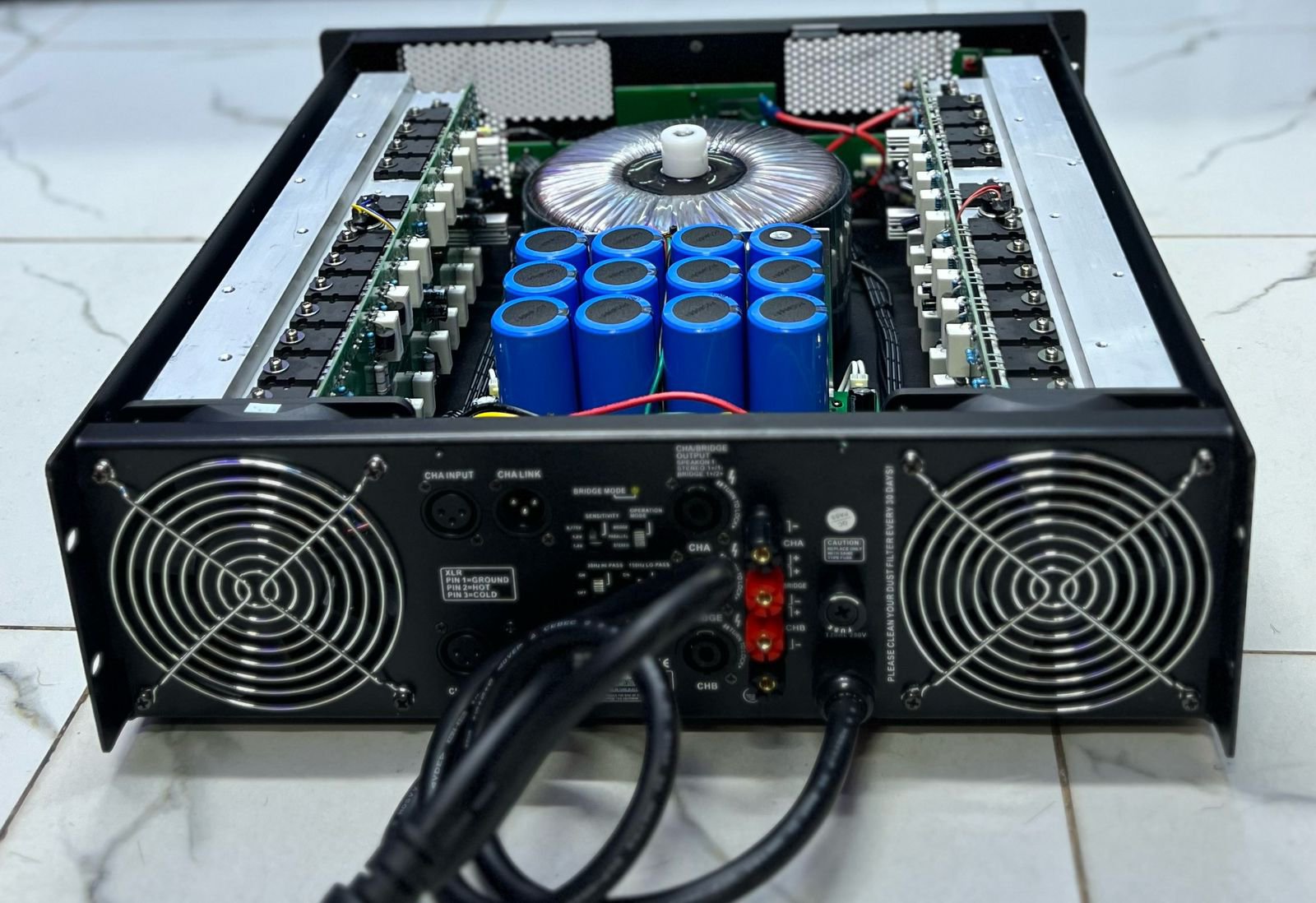

The image showcases the internal circuit design and components of the Advanced Peavey CS 4000 Professional Power Amplifier with its top chassis cover removed. This heavy-duty, two-rack-space (2RU) rackmount unit is designed for commercial live sound reinforcement, touring rigs, and permanent venue installations.Built around a high-efficiency Class-H output architecture, the internal design is split into a clean, symmetrical layout engineered to deliver massive wattage while minimizing heat generation.Key Internal Components Visible:Toroidal Power Transformer: Located dead-center, this massive circular transformer provides clean, high-current power distribution to both channels with minimal magnetic interference.Filter Capacitor Bank: The row of eight large blue cylindrical capacitors acts as an energy reservoir, smoothing the electrical supply to ensure deep, punchy transient response during heavy bass loads.Symmetrical Heat Sink Tunnels: Flanking both sides of the chassis are heavy-gauge aluminum heat sinks lined with multiple high-power output transistors. These modules utilize a wind-tunnel cooling design, pulling air through the front grill and exhausting it out the back via dual variable-speed DC fans to prevent thermal shutdown.Front Panel Controls: On the faceplate, the amplifier features robust handles, a heavy-duty power switch, independent detented volume attenuators for channels A and B, and LED indicators for signal monitoring, clipping protection, and power status.Technical Performance Specifications:Stereo Mode (2 Ohms): 2,400 Watts RMS per channelStereo Mode (4 Ohms): 1,350 Watts RMS per channelStereo Mode (8 Ohms): 800 Watts RMS per channelBridged Mono Mode (4 Ohms): 4,800 Watts RMSProtection Circuitry: Equipped with Peavey’s proprietary DDT™ (Distortion Detection Technique) compression system, which monitors output levels to prevent clipping distortion that can damage connected loudspeakers.Rear Panel Connectivity: Includes XLR and 1/4″ TRS combo in
