Dbx 234XL 2/3-Way Stereo 4-Way Mono Crossover

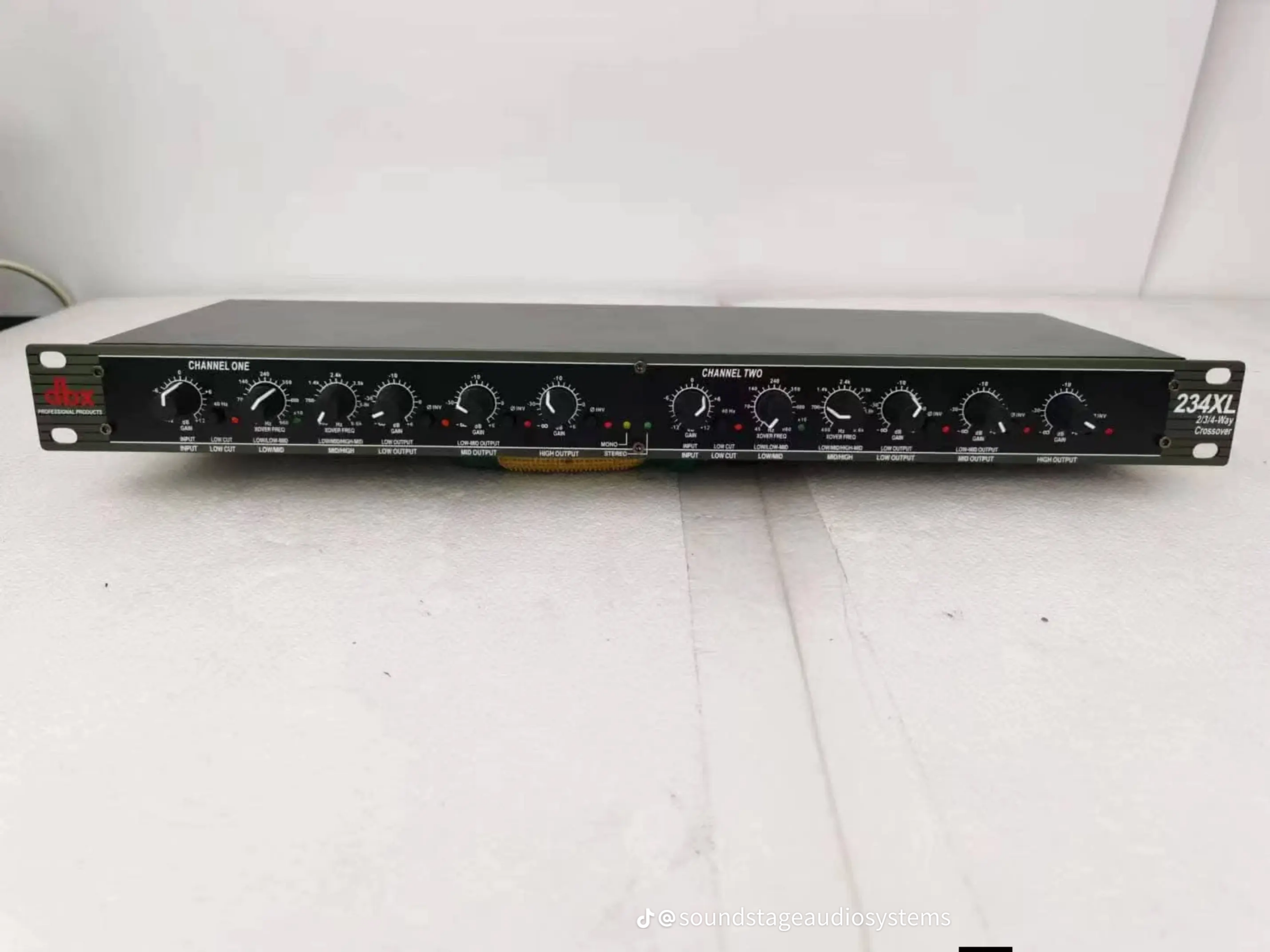

The dbx 234XL is a professional-grade analog audio crossover designed to split incoming audio signals into specific frequency bands before they reach your amplifiers and speakers. By routing low frequencies to subwoofers and high frequencies to tweeters, it optimizes speaker efficiency, prevents distortion, and improves overall sound clarity. It is a standard rack-mountable unit commonly used in live sound reinforcement, PA systems, clubs, and studio monitoring environments.Core Specifications & ModesStereo 2-Way Operation: Splits stereo inputs into independent Left/Right Low and High frequency bands.Stereo 3-Way Operation: Splits stereo inputs into independent Left/Right Low, Mid, and High frequency bands.Mono 4-Way Operation: Combines the processing power into a single mono channel, splitting it into Low, Low-Mid, High-Mid, and High frequency bands.Filter Topology: Utilizes professional 24dB per octave Linkwitz-Riley filters. These filters ensure a flat summed frequency response at the crossover points, preventing acoustic peaks or dips.Key Features & Physical ControlsFront Panel Interactivity:Precision Gain Controls: Independent input gain adjustments alongside discrete output level controls for every single frequency band.Low Cut Filters: Activates a 40Hz high-pass filter on each channel to eliminate low-end rumble and protect subwoofers.Phase Invert Switches: Individual phase reverse switches on each output to quickly correct phase cancellation issues between drivers.Mode LEDs: Clear visual indicators that illuminate to show whether the unit is currently configured in stereo or mono operation.Rear Panel Connectivity:Balanced XLR Connections: Gold-plated XLR inputs and outputs ensure secure, low-noise signal transmission over long cable runs.x10 Frequency Multiplier Switches: Switches on both channels shift the crossover frequency range up by a factor of 10, allowing the unit to handle mid-to-high frequency transitions smoothly.Low-Frequency Summing: A dedicated
