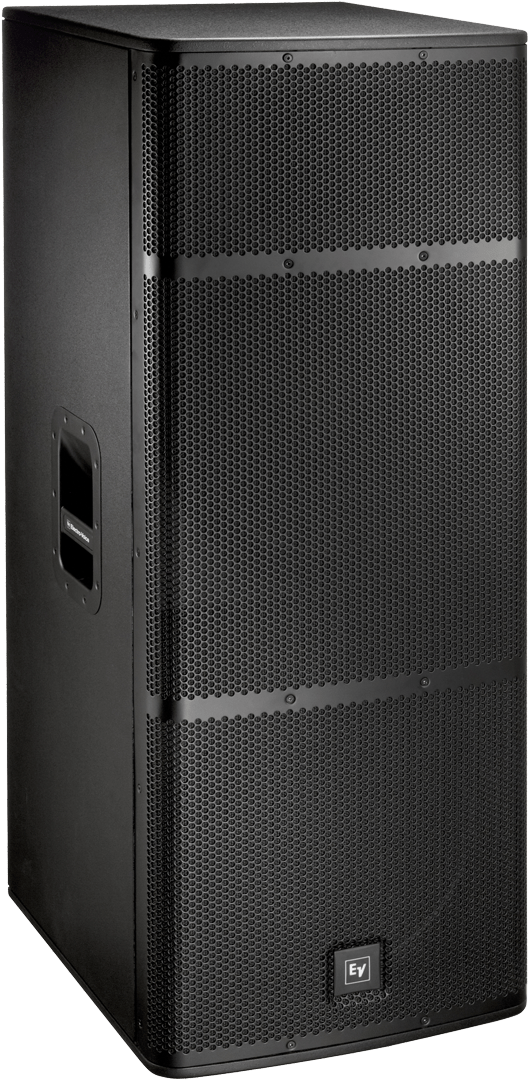

EV ELX215  full‑range loudspeaker

EV ELX215 full‑range loudspeaker Dual 15″ 2‑way passive full‑range loudspeaker High-volume punch and ultra-wide frequency response Ideal for mains Two EVS-15K woofers for extended LF 1.5-inch DH-1K titanium HF compression driver 38 Hz – 20 kHz frequency range 90° x 50° coverage-pattern waveguide 137 dB max SPL Power handling: 600 W continuous, 2400 W peak Braced 15mm plywood enclosure Black textured finish Dual 15-inch two-way full-range loudspeaker This twin woofer configuration delivers real low-end punch — ideal for applications that demand high volume output and an ultra-wide frequency response from a single cabinet. SPECIFICATIONS Freq. Response (-3 dB) 62 Hz – 18 kHz¹ Freq. Range (-10 dB) 38 Hz – 20 kHz¹ Axial Sensitivity 96 dB SPECIFICATIONS Max. Measured SPL³ 137 dB Recommended HP Freq. 35 Hz Coverage (Horiz. x Vert.) 90° x 50° Power Handling 600W Continuous, 2400W Peak LF Transducer(s) (2) EVS-15K, 381mm (15″) Woofers HF Transducer DH-1K, 39mm (1.5″) Titanium Diaphragm Compression Driver Crossover Frequency 1.7 kHz Nominal Impedance 4 Ohms Minimum Impedance 3.7 Ohms Connectors Dual NL4 Enclosure Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint Grille 18GA Steel with Black Powdercoat Dimensions (H x W x D) 1154mm x 432mm x 501mm (45.44″ x 17.02″ x 19.73″) Net Weight 40.7 kg (89.6 lbs) Shipping Weight 48.4 kg (106.6 lbs)
