Nexo LS1200 Subwoofer BASS 18 inch

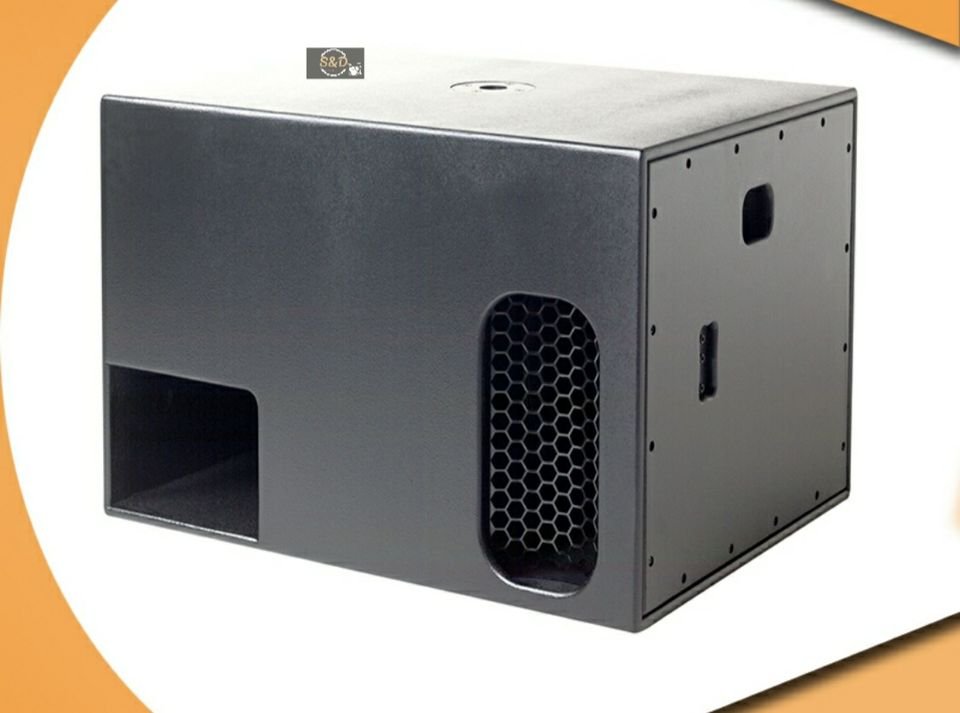

Nexo LS1200 Subwoofer BASS 18 inch LS18 The LS18 subbass cabinet brings new versatility to NEXO GEO S12 line array systems and PS Series cabinets, delivering high SPL at a relatively low cost. Light and easy-to-handle, the LS18 uses a single 18″ long excursion driver and is compatible with all GEO S12 accessories, so it can fly with the S1230 and S1210 line array modules, or anchor a ground stack of S12 cabinets. With a steel stand fitting on top of the cabinet, the LS18 also allows for pole mounting of GEO S12 cabinets or NEXO PS15-R2 full-range speakers. LS18 can be flown in tandem with PS15s, which will be of particular interest to the installation sector. KEY FEATURES High power system (137-140dB peak SPL @ 1m) Frequency response 30Hz-130Hz 1 x 18″ 4″ voice coil long excursion 8Ω driver Light and easy to handle Integrates with GEO S12 and PS Systems SPECIFICATIONS Frequency Response [a] 35 Hz – 120 Hz ±3dB Usable Range @-6dB [a] 32Hz – 130 Hz Sensitivity 1W @ 1m [b] 107 dB SPL Nominal Nominal Peak SPL @ 1m [b] 137 to 140 dB Peak Nominal Impedance 8 Ω Crossover Frequencies 60 Hz – 85 Hz – 120 Hz Active Amplified Controller NXAMP4x1: 2 x LS18 in parallel on 2 bridged channels NXAMP4x4: 2 x LS18 on 1 channel FEATURES Components 1 x 18’’ (46cm) 4’’ voice coil long excursion 8 Ω driver Height x Width x Depth 510 x 675 x 775 mm (20.1” x 26.1” x 30.5”) Weight : Net 55.5 kg (122.3 lb) Connectors 2 x NL4MP Speakon 4 pole Construction Baltic Birch Ply & structured black coating Handles 4 metal recessed pockets (2 per side) Front finish Molded Dark Grey Metal Grill Flying Points Two side plates connecting with external accessories Stand fittings Internal Steel Stand Fitting on Top (35mm, 1″3/8) allows pole mounting for PS15 or Geo S12
