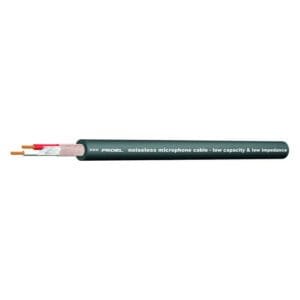

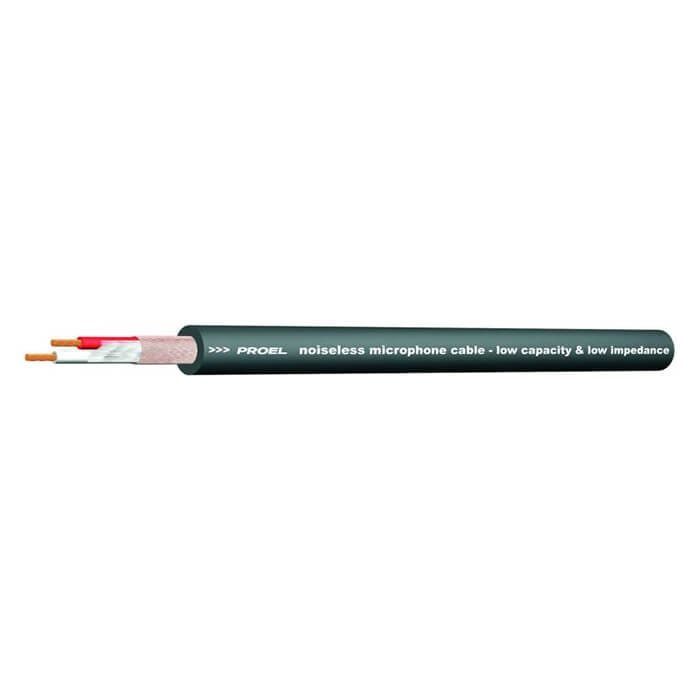

Proel HPC210 Microphone Cable Roll

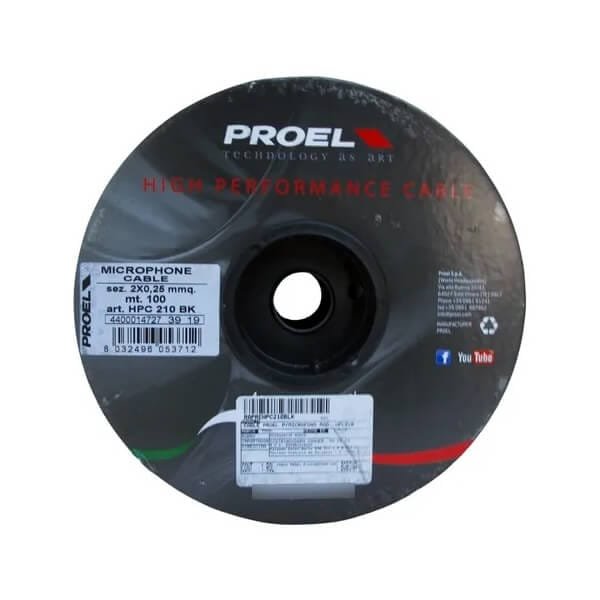

Proel HPC210 Microphone Cable Roll Professional balanced microphone cable (2 x 0,22 mm2) with flexible overall jacket – Dense spiral red copper shield – O.F.C. (Oxygen Free Copper). Available colors: Black, Blue, Bronze, Green, Purple, Red, White, Yellow. Application fields: Recording studios / Microphone connections Conductors: Bare copper 24 AWG = 30 x 0.10 mm (0.22 mm 2 ) Insulation: PE (Compact polyethylene) Ø 1.60 mm – RED/WHITE Shield: Spiral copper 16x5x0.10 mm > 90% Jacket: Flexible PVC 60 shore Ø 6.50 mm Color: Black Electrical resistance: 93 Ohm/Km (conductor) @ 20°C 20 Ohm/Km (shield) @ 20°C Electrical capacitance: 46 pF/m (conductor/conductor) @ 1 KHz 90 pF/m (conductor/shield) @ 1 KHz Velocity of propagation: 80 % Operating temperature: -20°C / +70°C Working tension: < 50 V AC < 75 V DC Weight: 46 Kg/Km Minumum bending radius: 20 x cable section radius Packaging: 100 m carton reel 300 m wooden reel (HPC210BKR300) 500 m wooden reel (HPC210BKR500)
